Door Locks & Windows

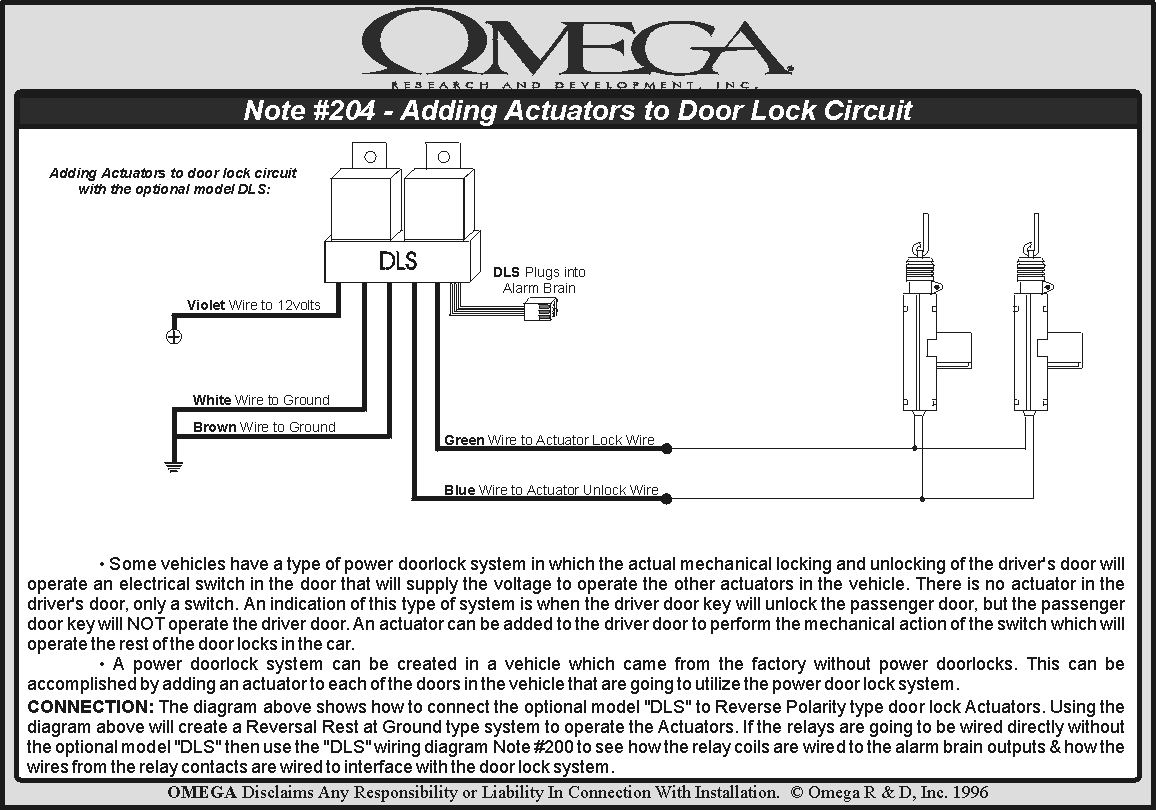

➊  Adding Actuators

âž‹  Common Door Lock Triggers

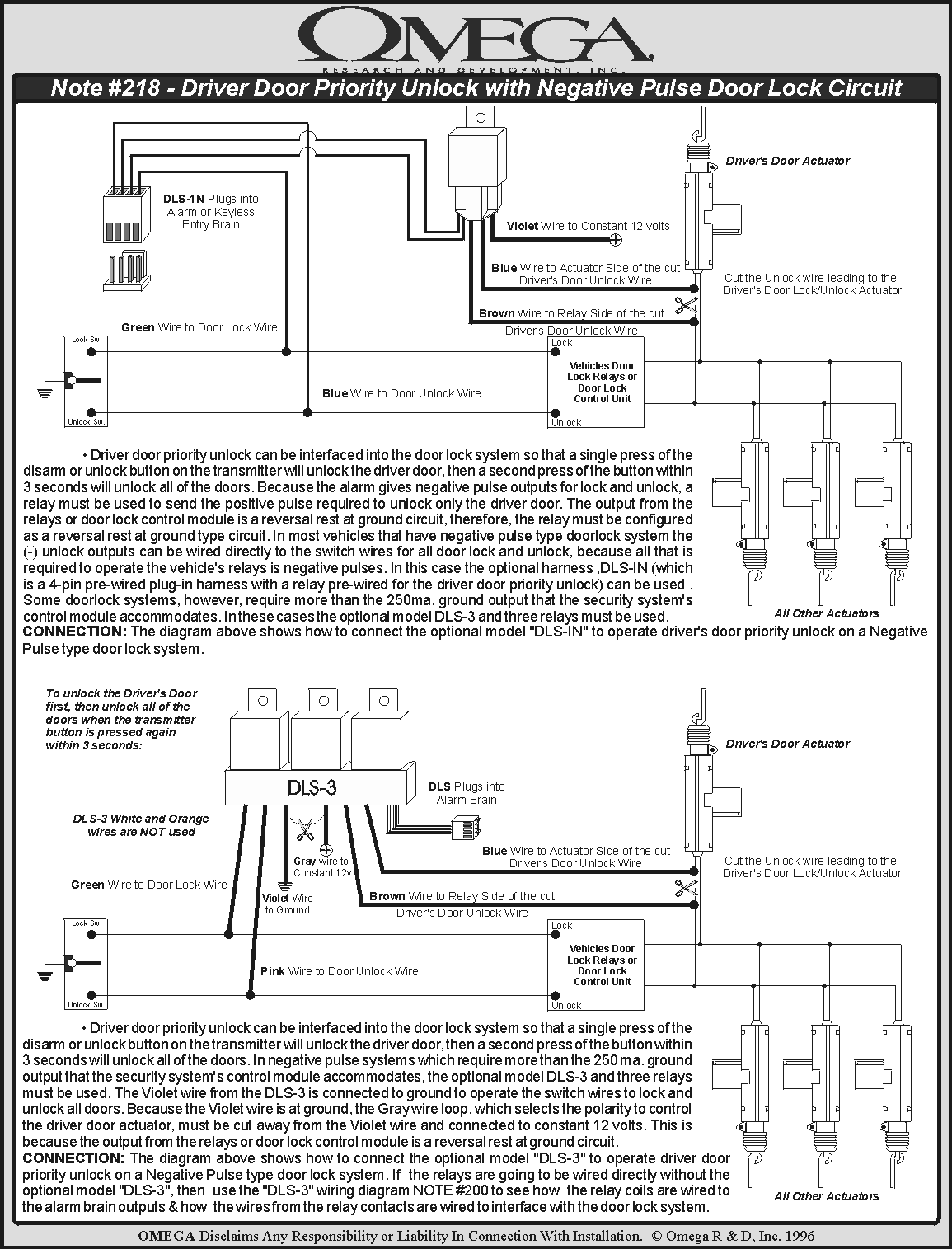

      ⓐ  Negative Pulse

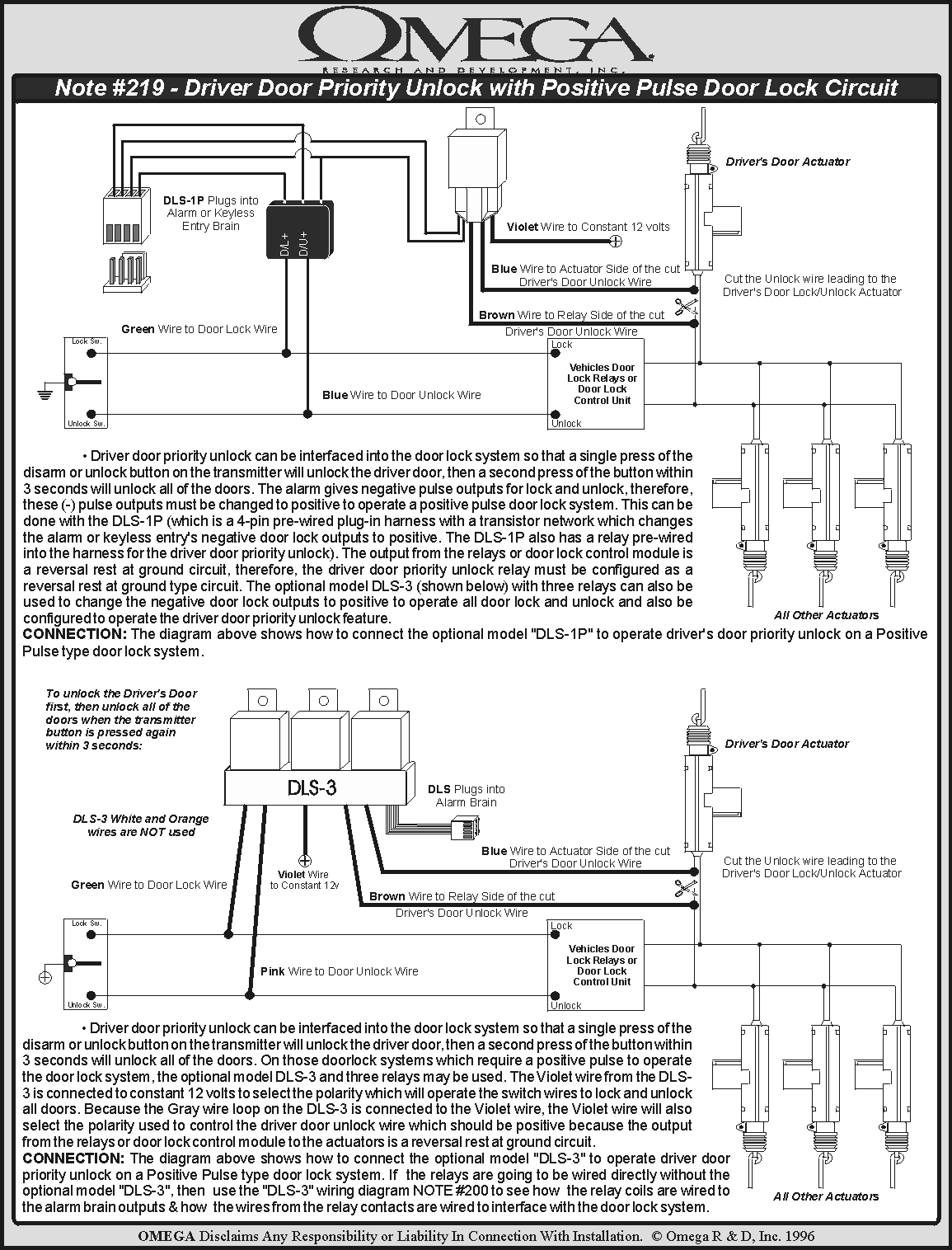

      â“‘  Positive Pulse

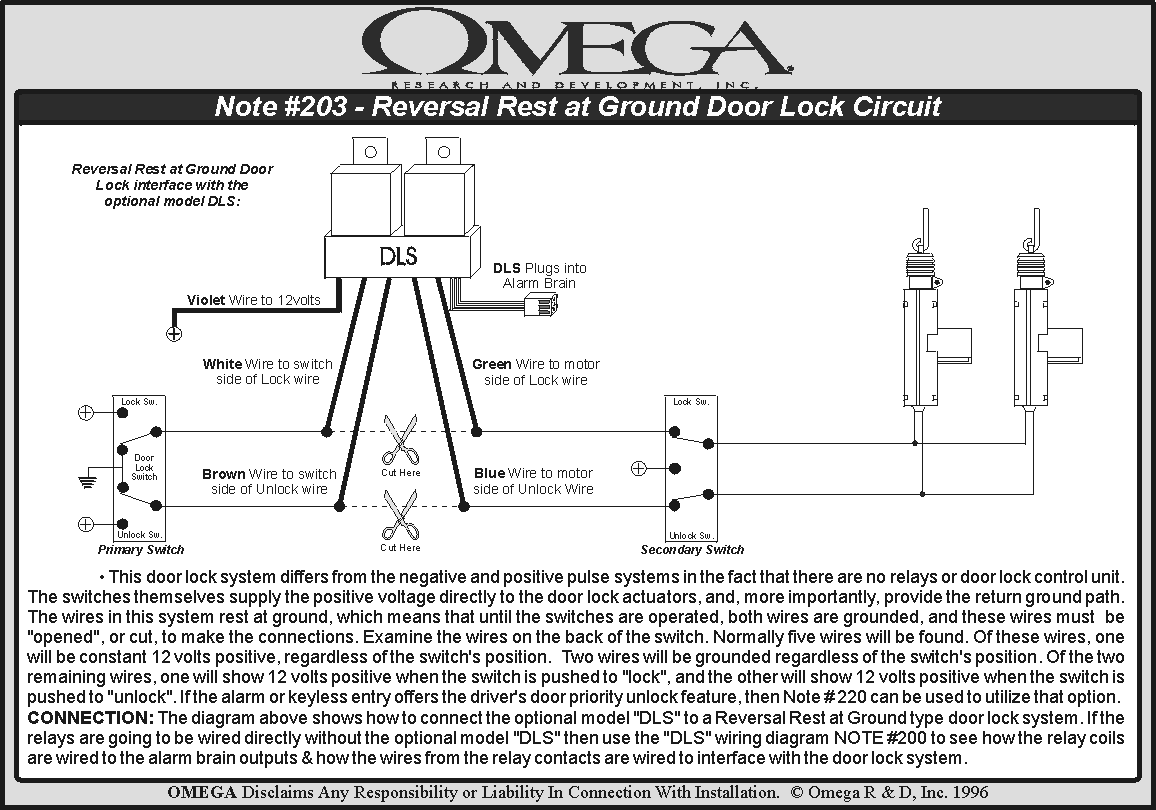

      â“’  Reversal Rest at Ground

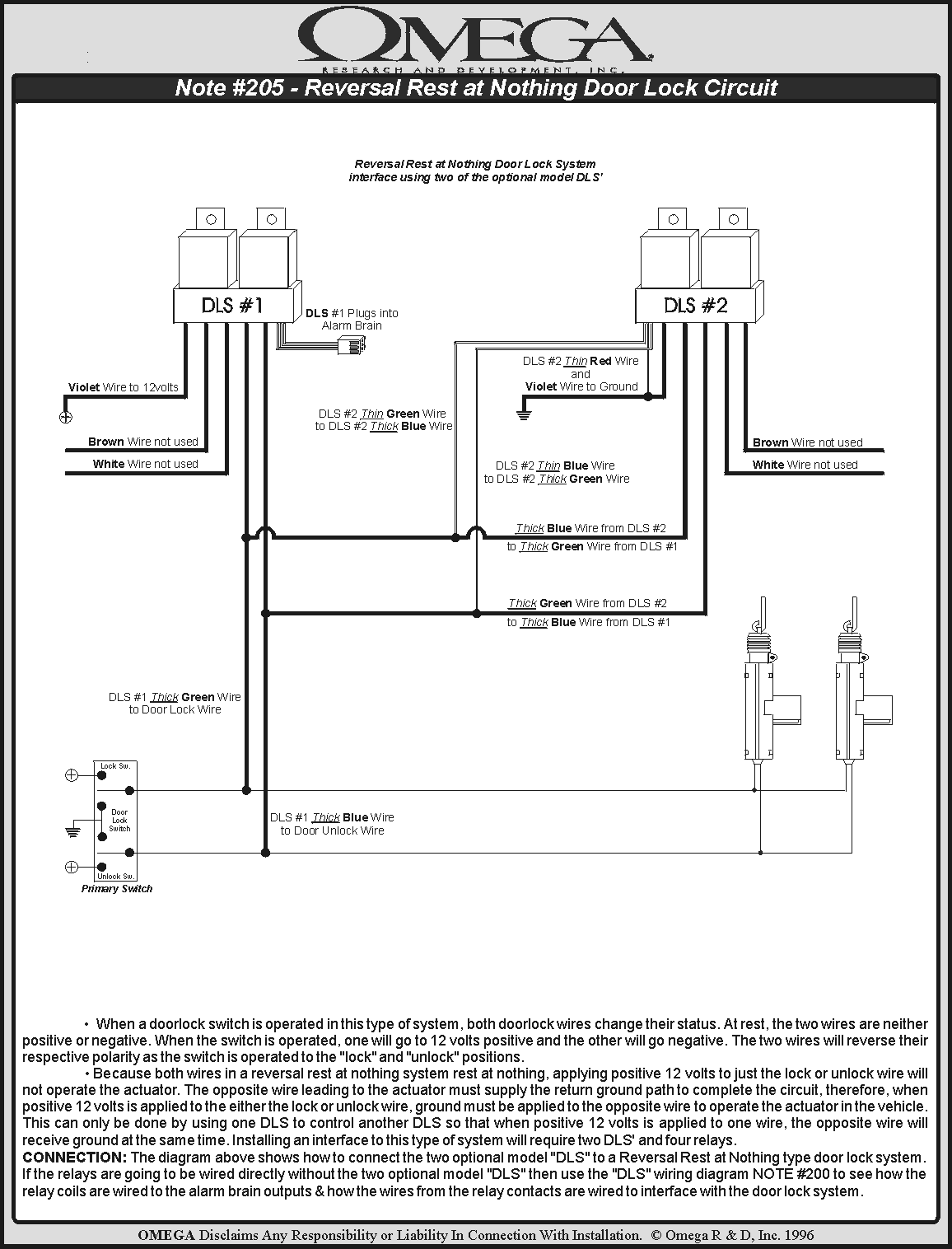

      â““  Reversal Rest at Nothing

➌  Keyless Entry to Factory Door Locks

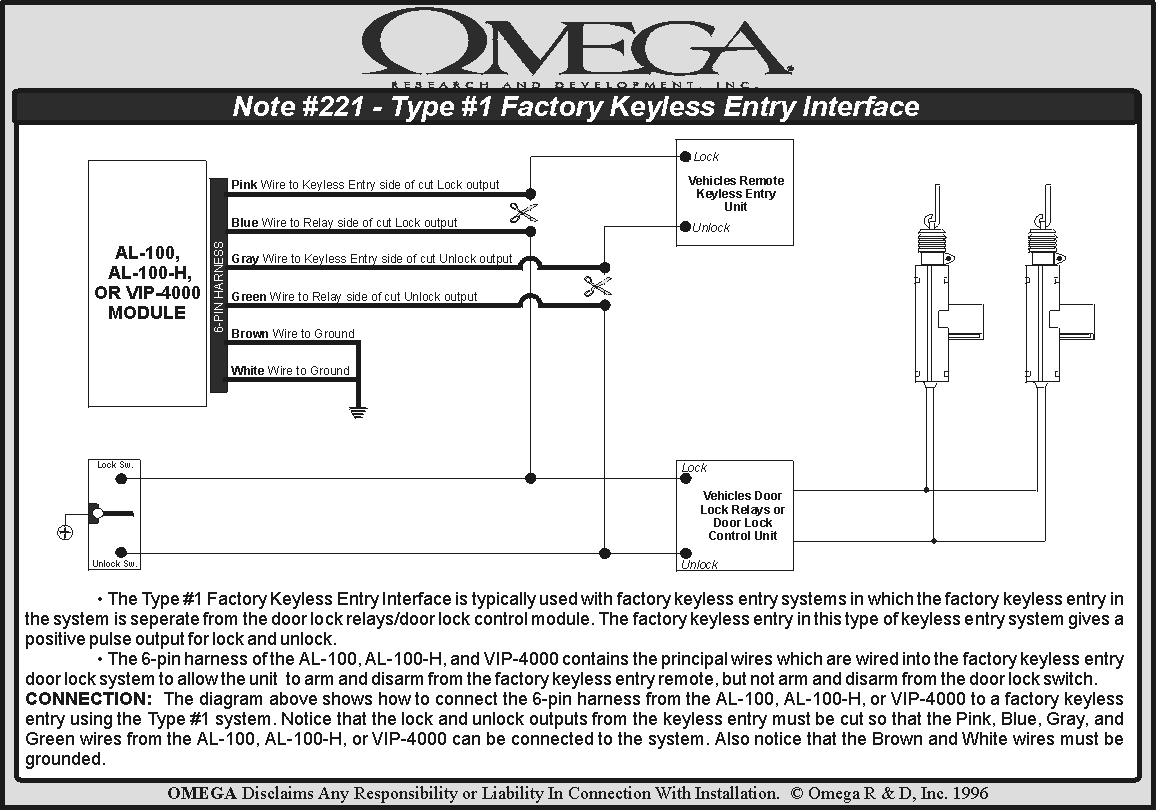

      ⓐ  Keyless Entry - Type 1

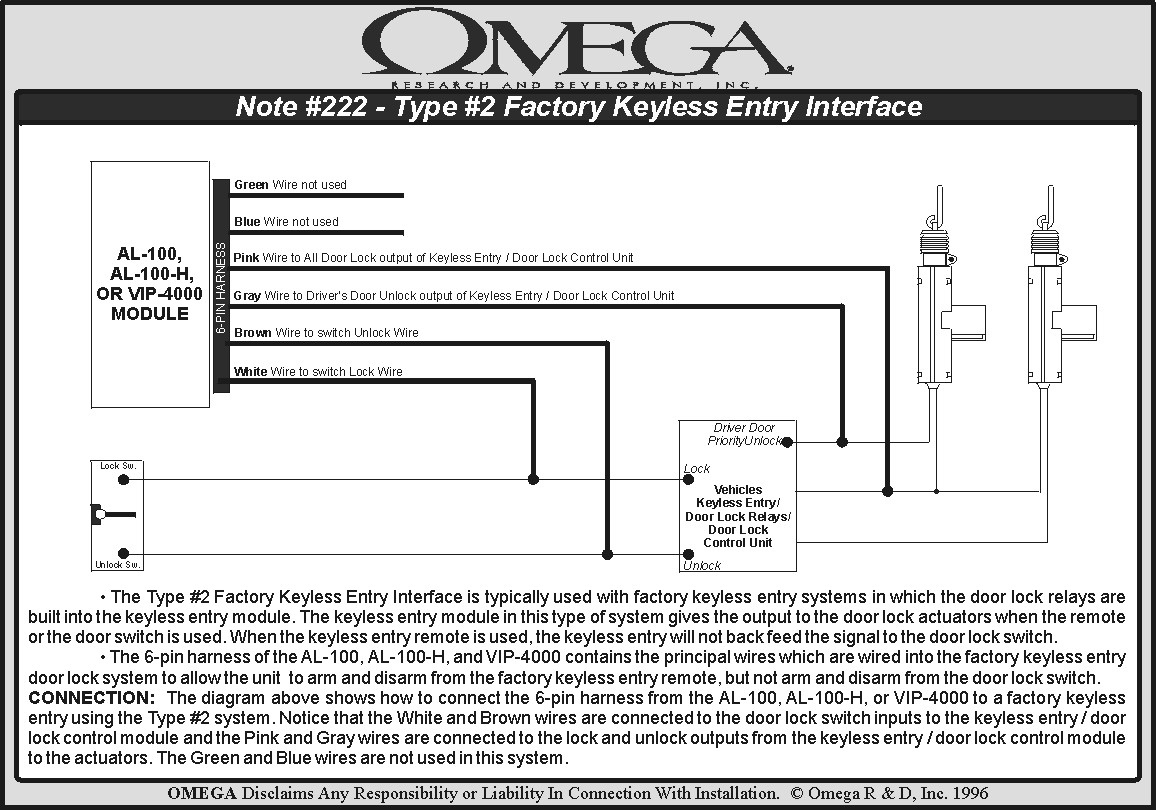

      â“‘  Keyless Entry - Type 2

      â“’  Keyless Entry - Type 3

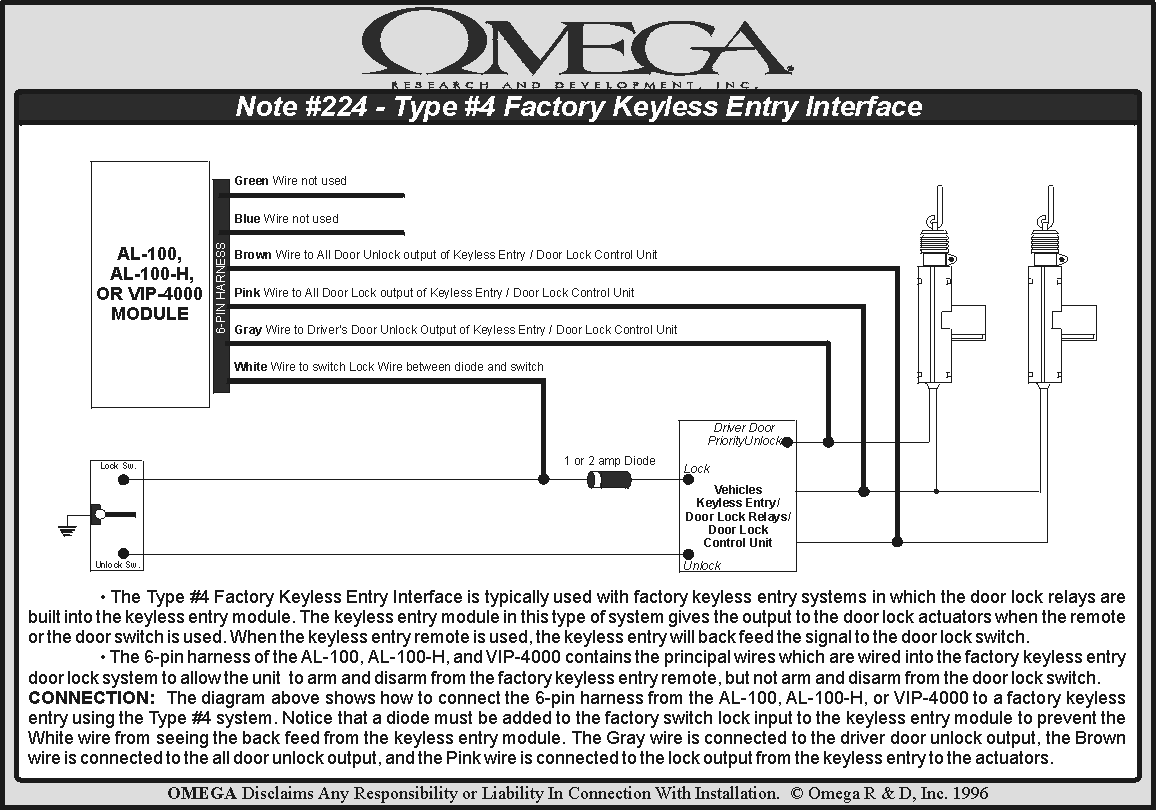

      â““  Keyless Entry - Type 4

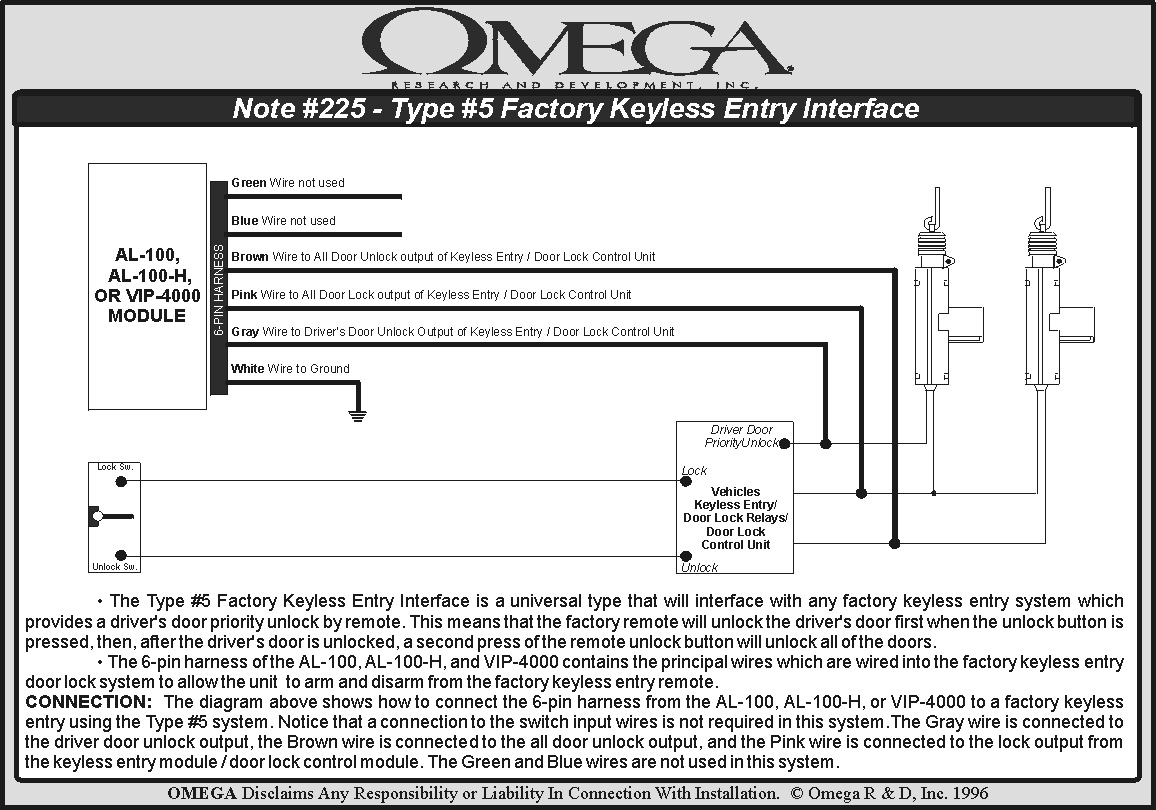

      â“”  Keyless Entry - Type 5

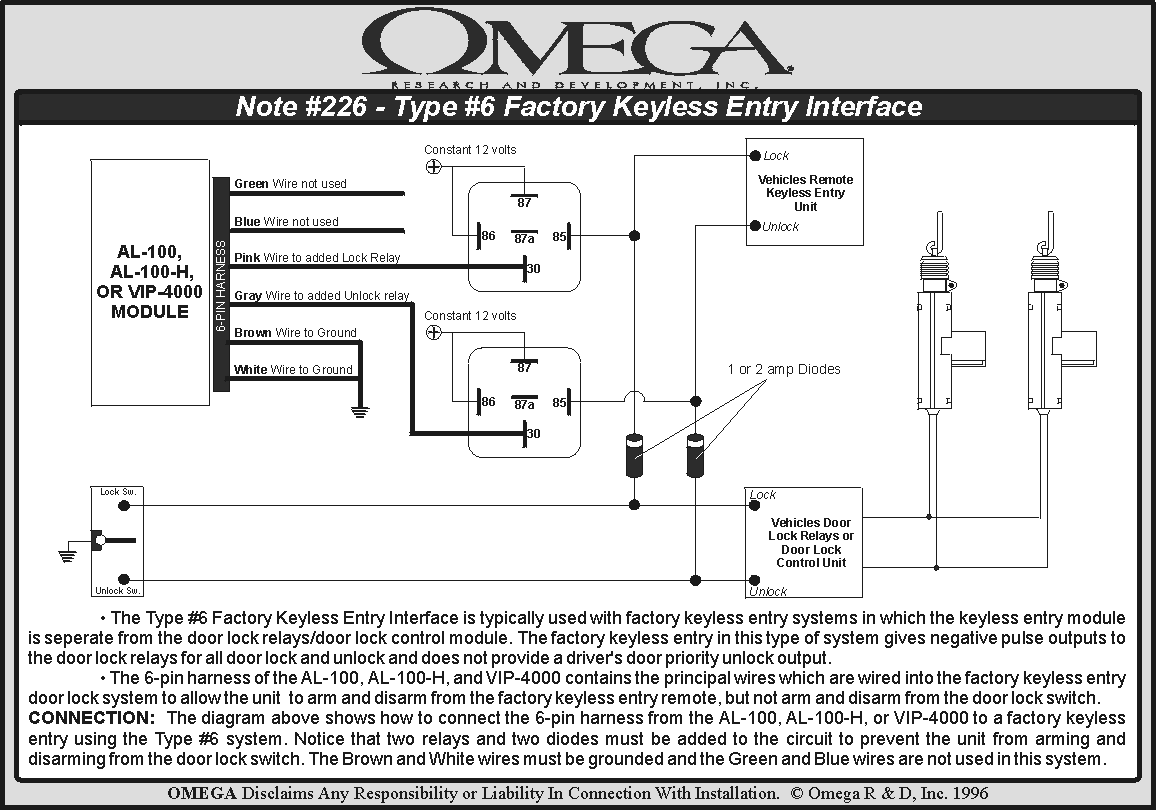

      â“•  Keyless Entry - Type 6

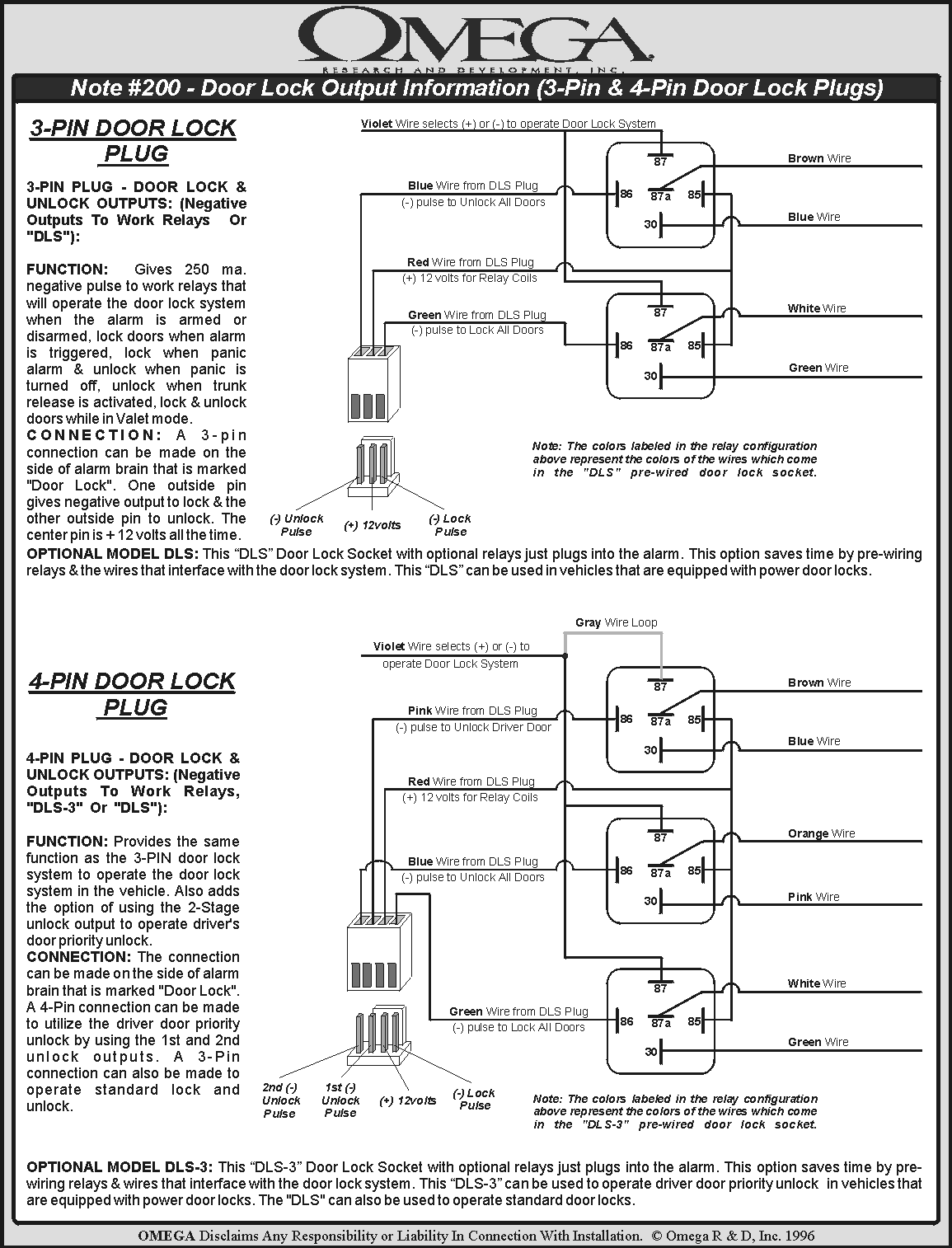

      â“–  3-Wire & 4-Wire Alarm Harness

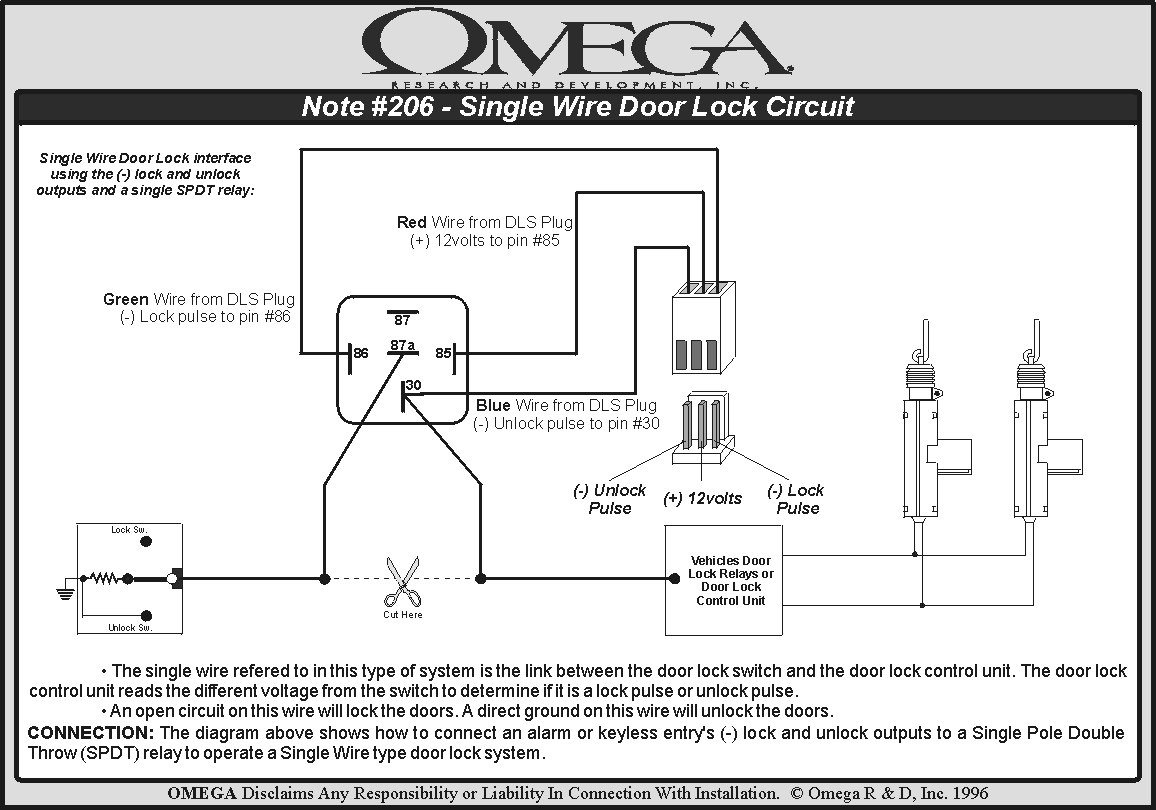

➍  Single Wire Door Locks

➎  Resistor Locks

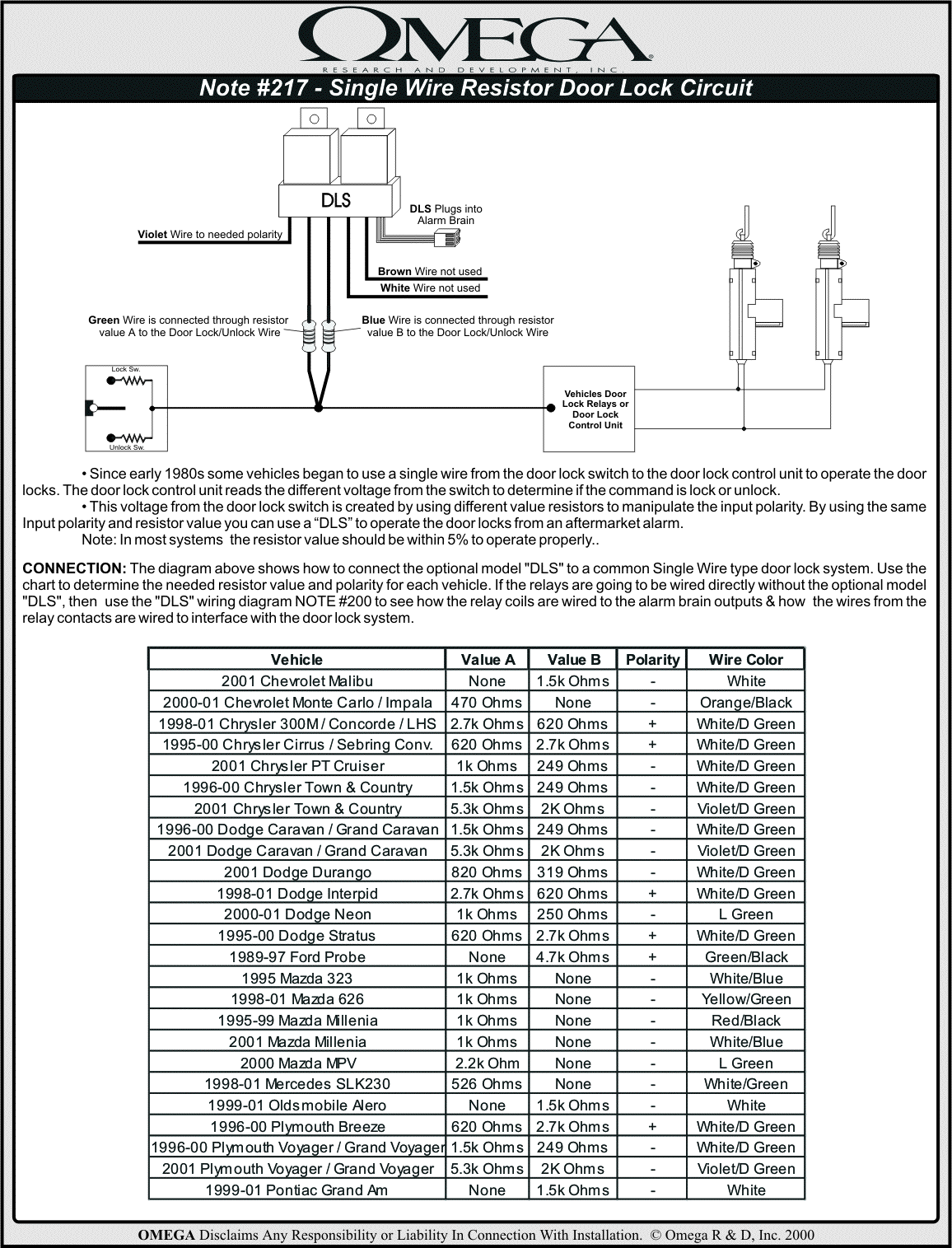

      ⓐ  Single Wire Resistor

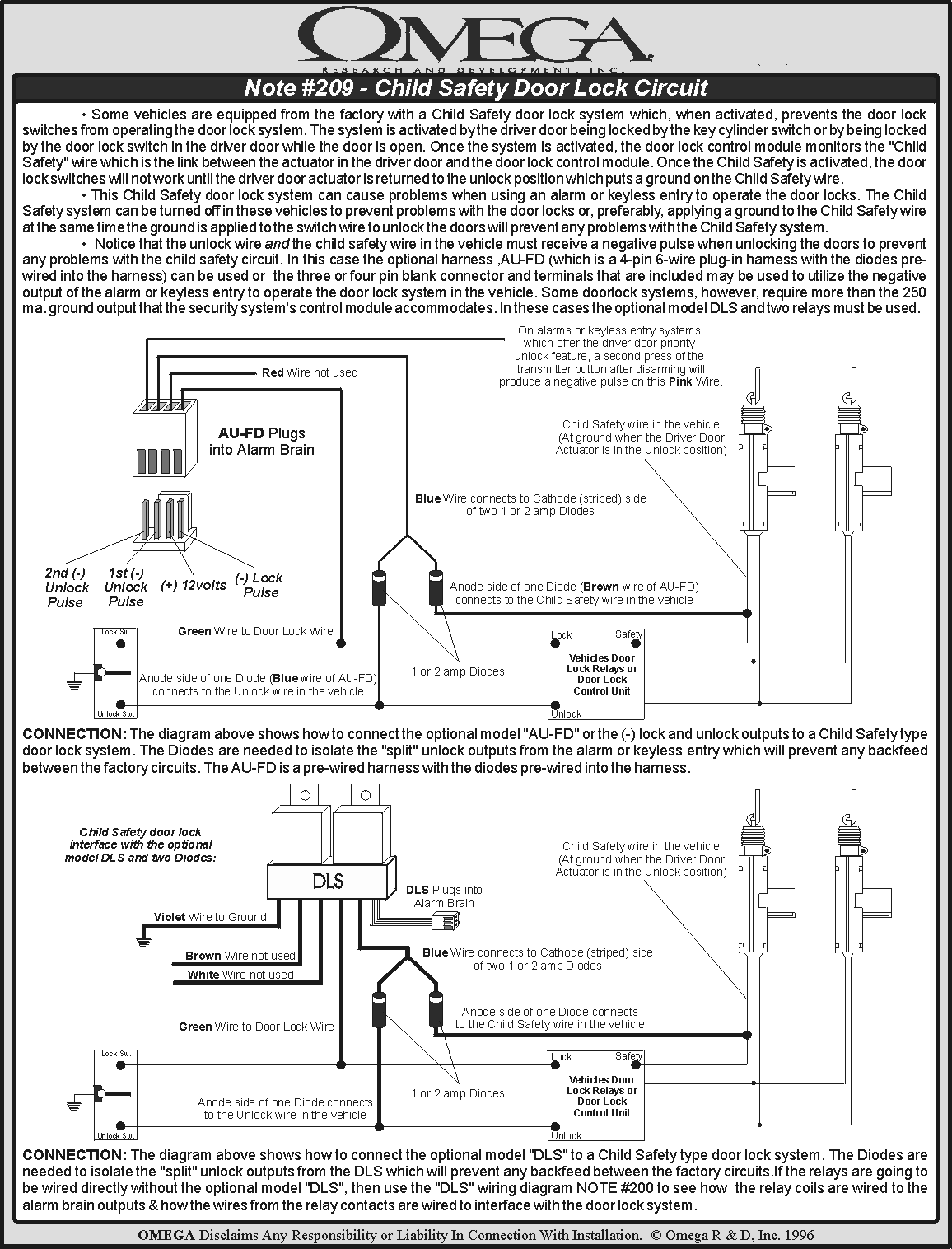

      â“‘  Child Safety Resistor

      â“’  Keyless Entry - Type 4

      â““  Keyless Entry - Type 6

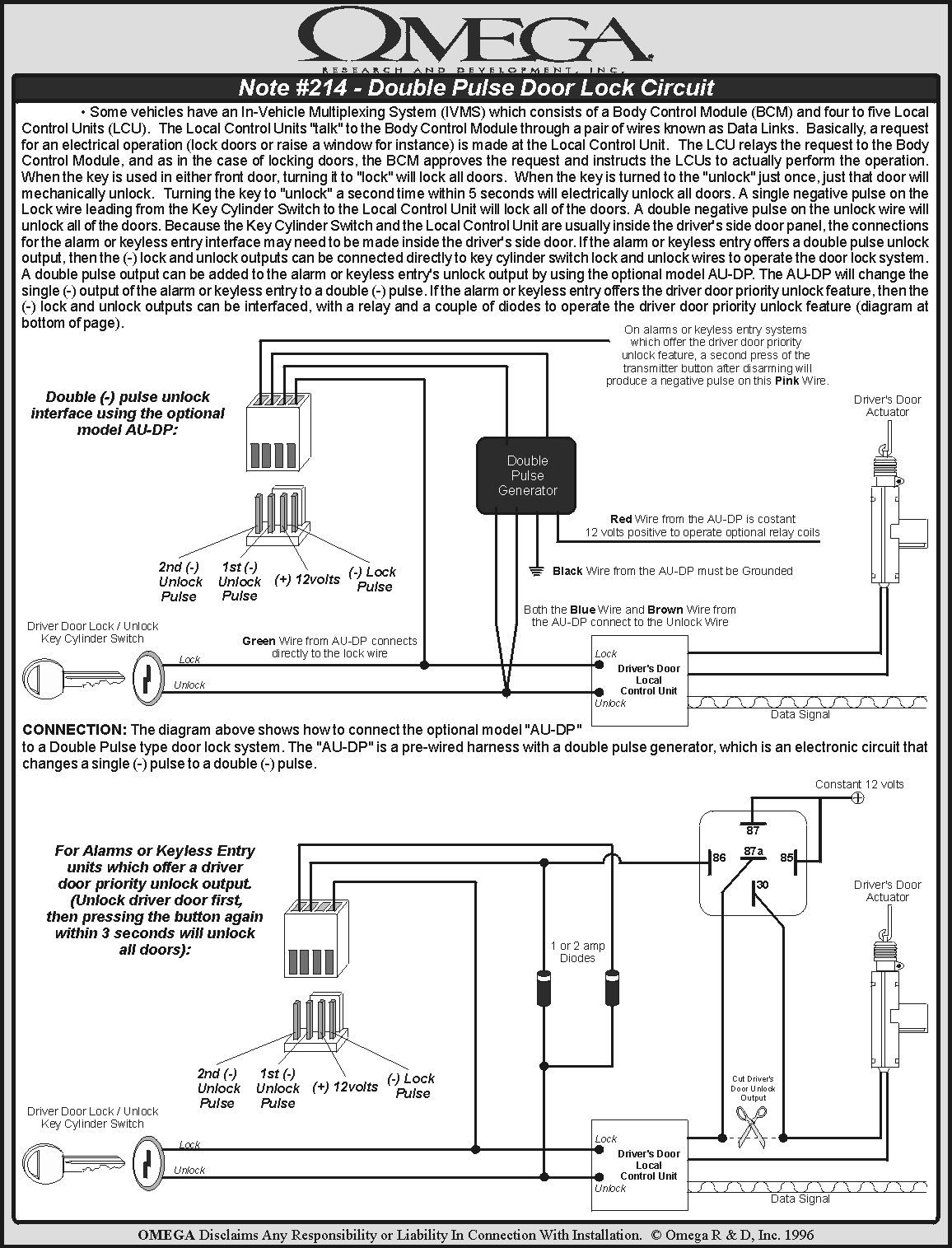

➏  2-Pulse Door Locks

      ⓐ  2-Pulse Negative

      â“‘  2-Pulse Positive

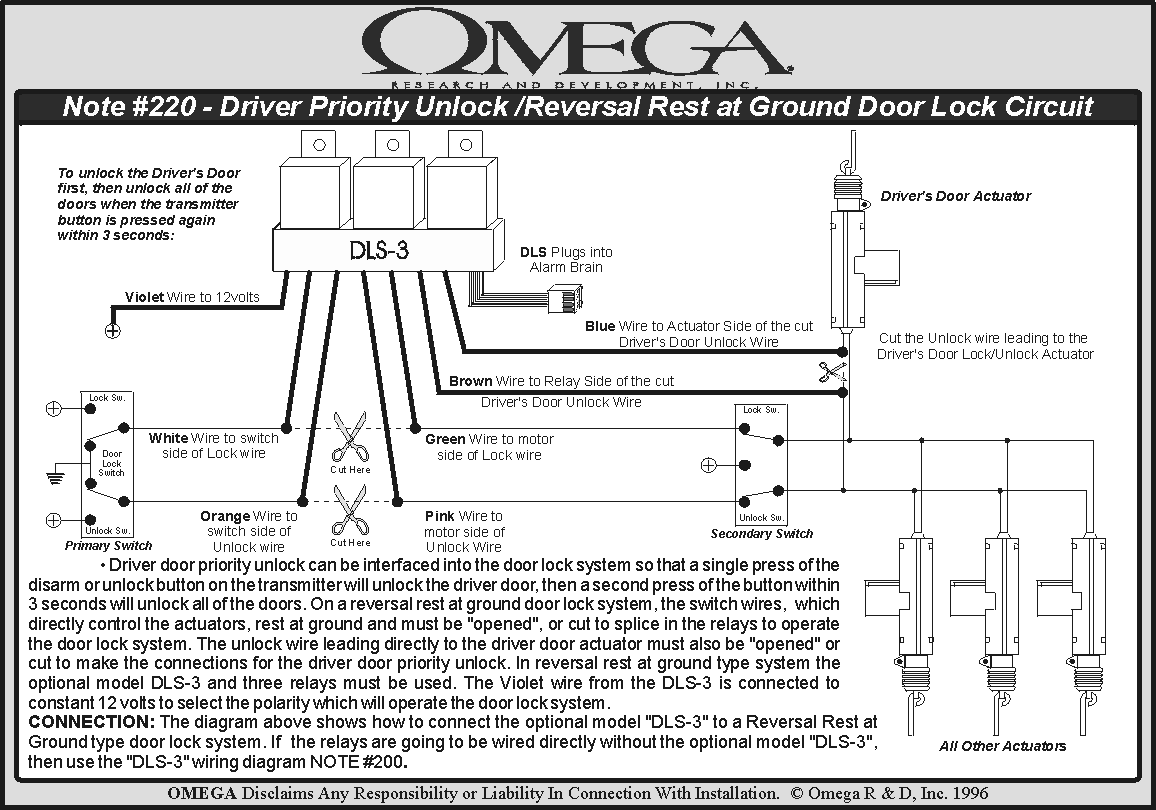

      â“’  Reversal Rest at Ground

➐  Make/Model Specific

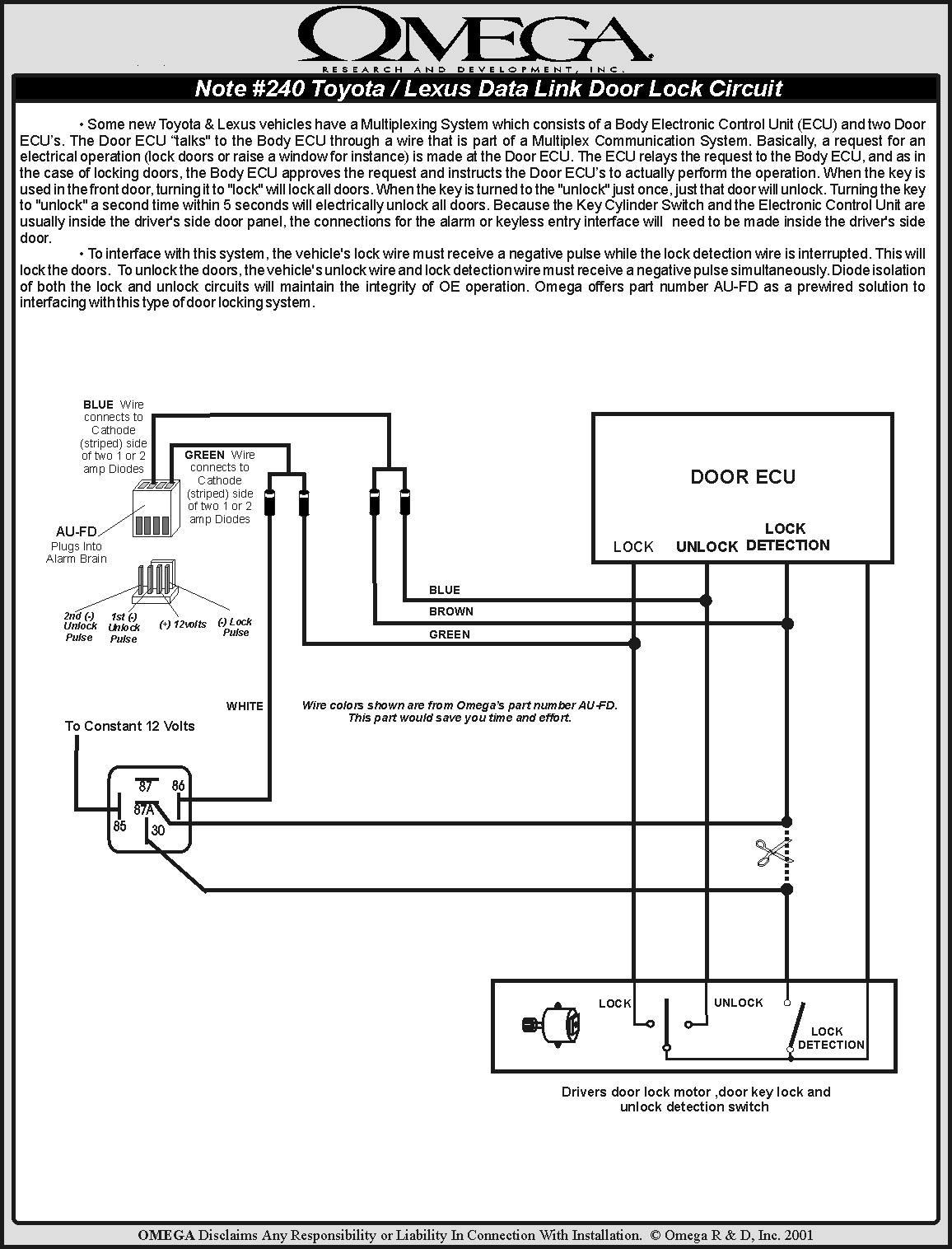

      ⓐ  Toyota & Lexus Data Link

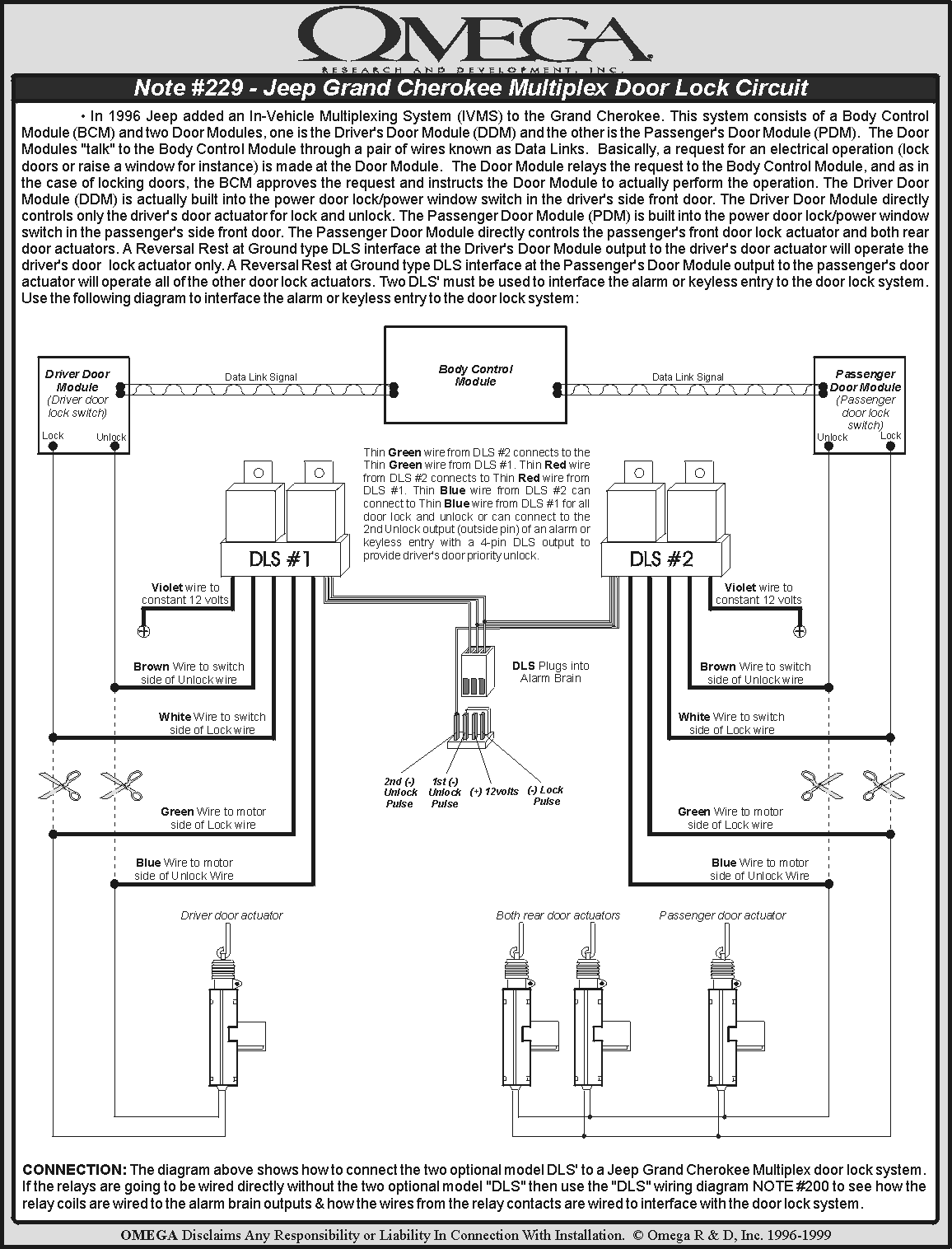

      â“‘  Jeep Grand Cherokee Multiplex

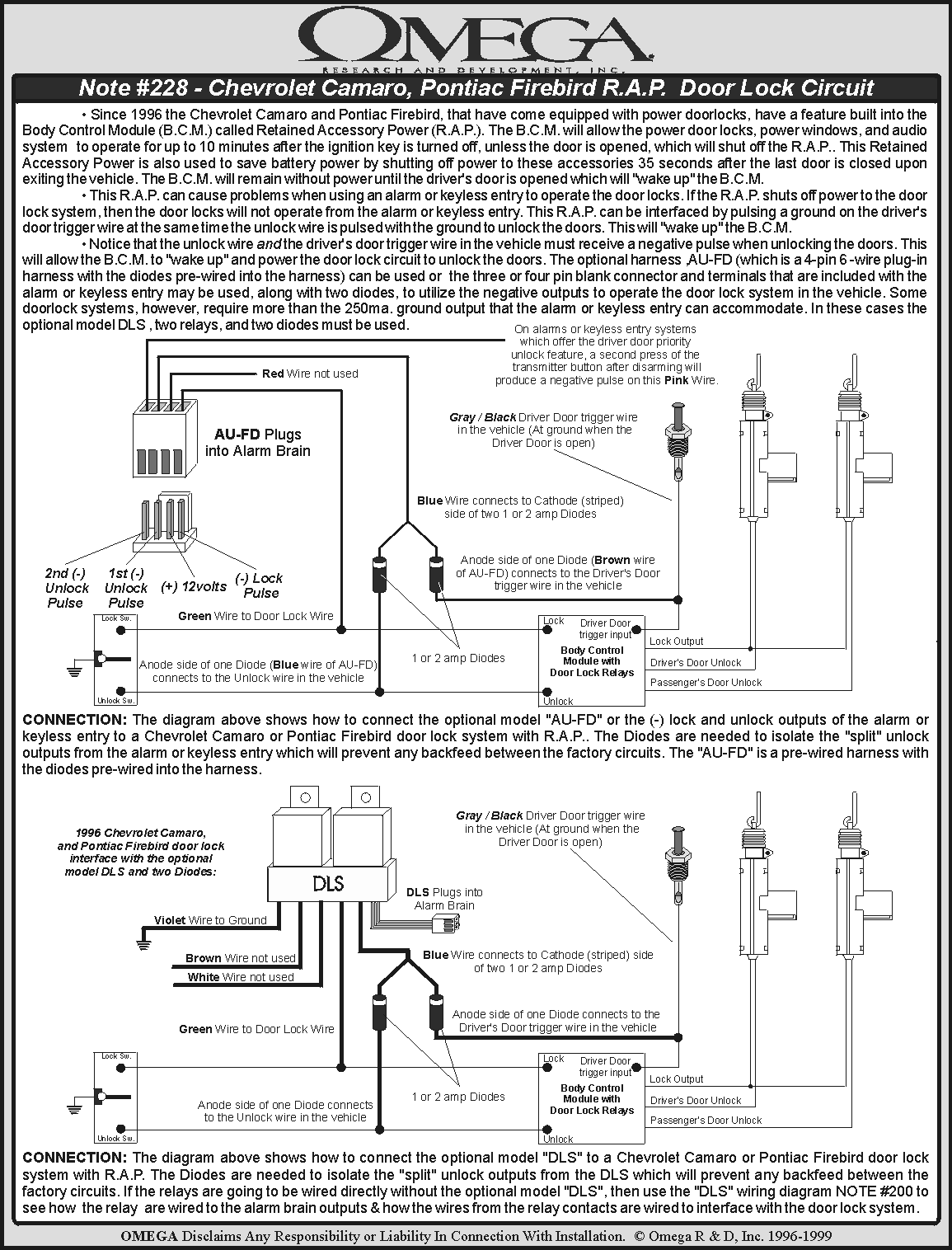

      â“’  Camaro & Firebird RAP

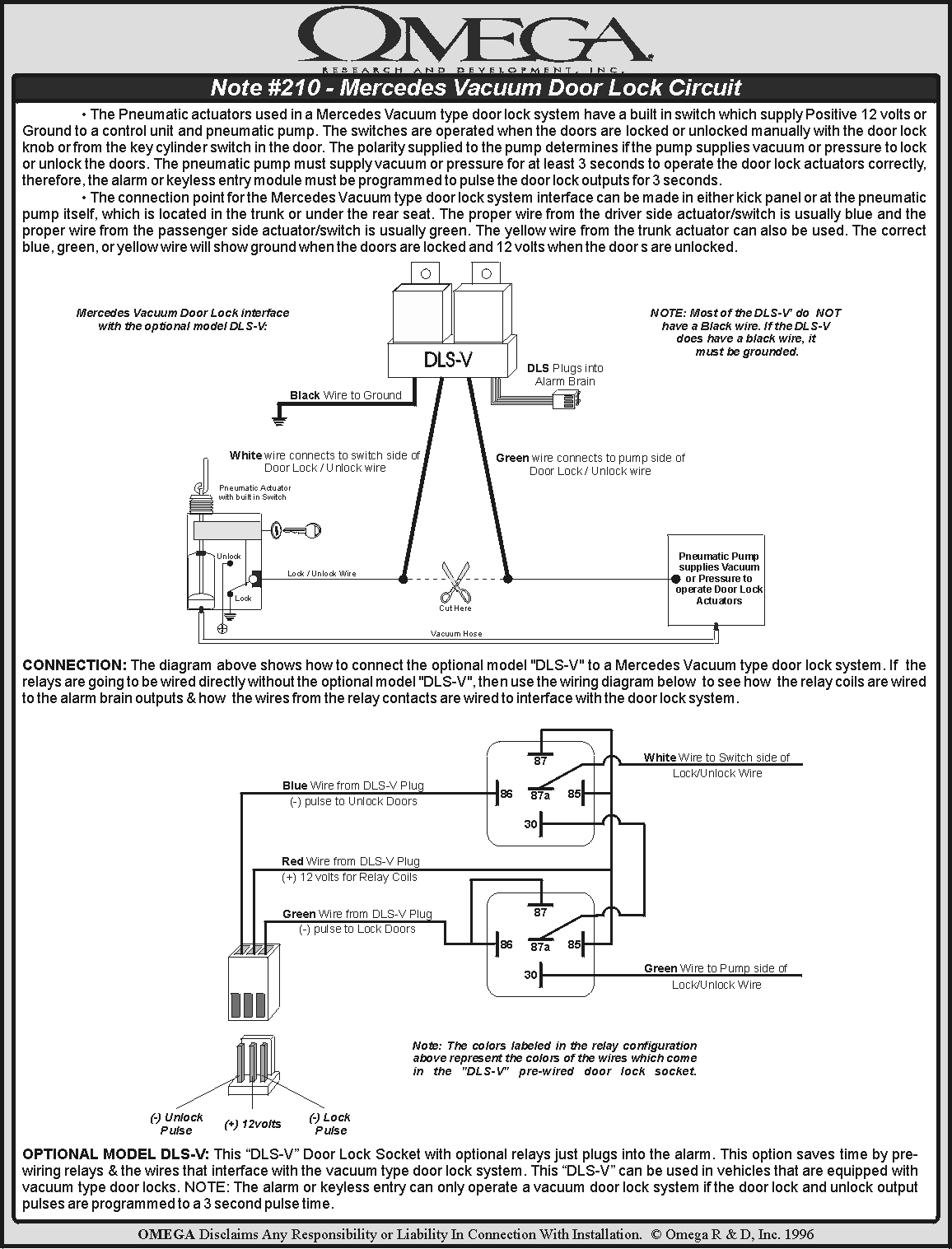

      â““  Mercedes Vacuum

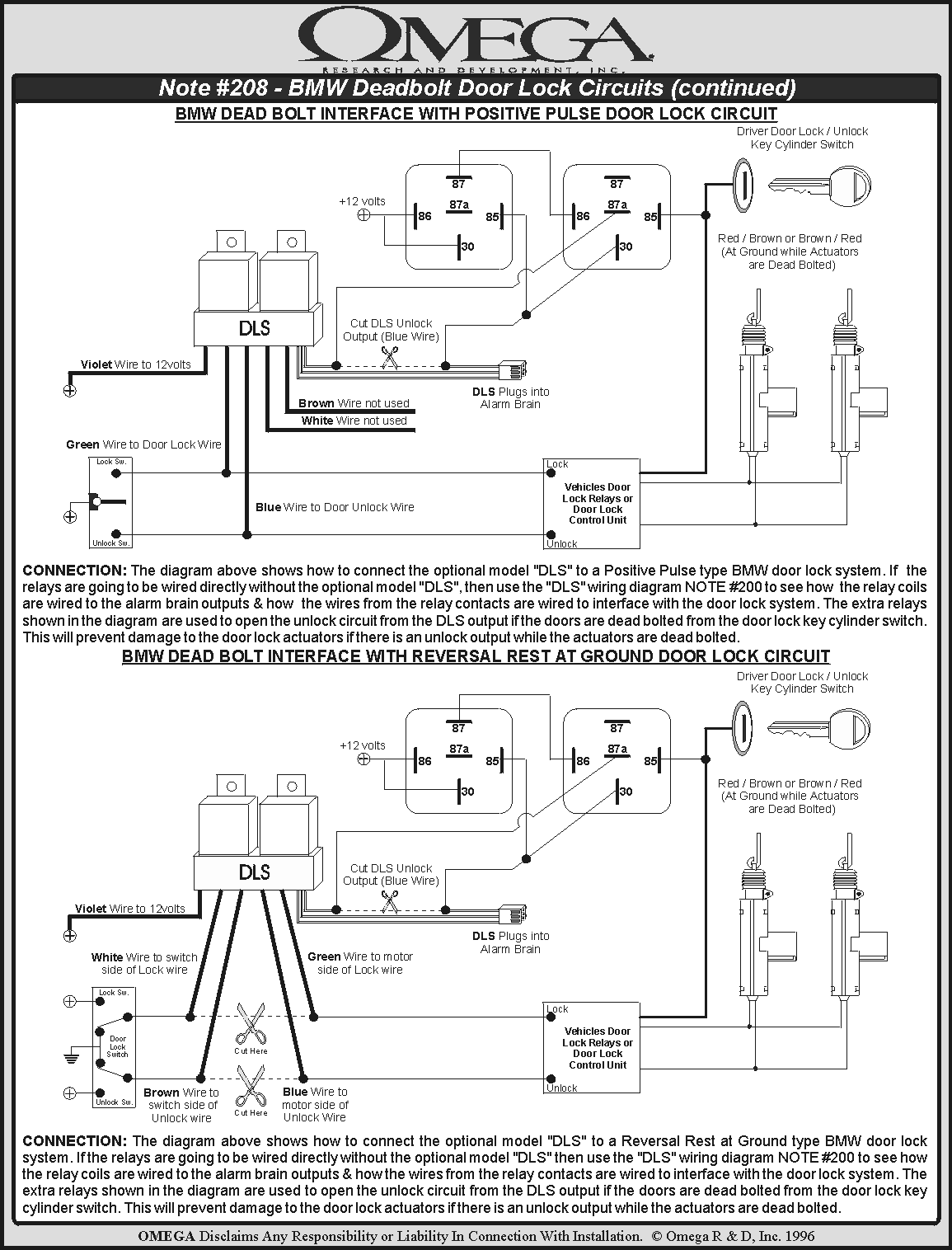

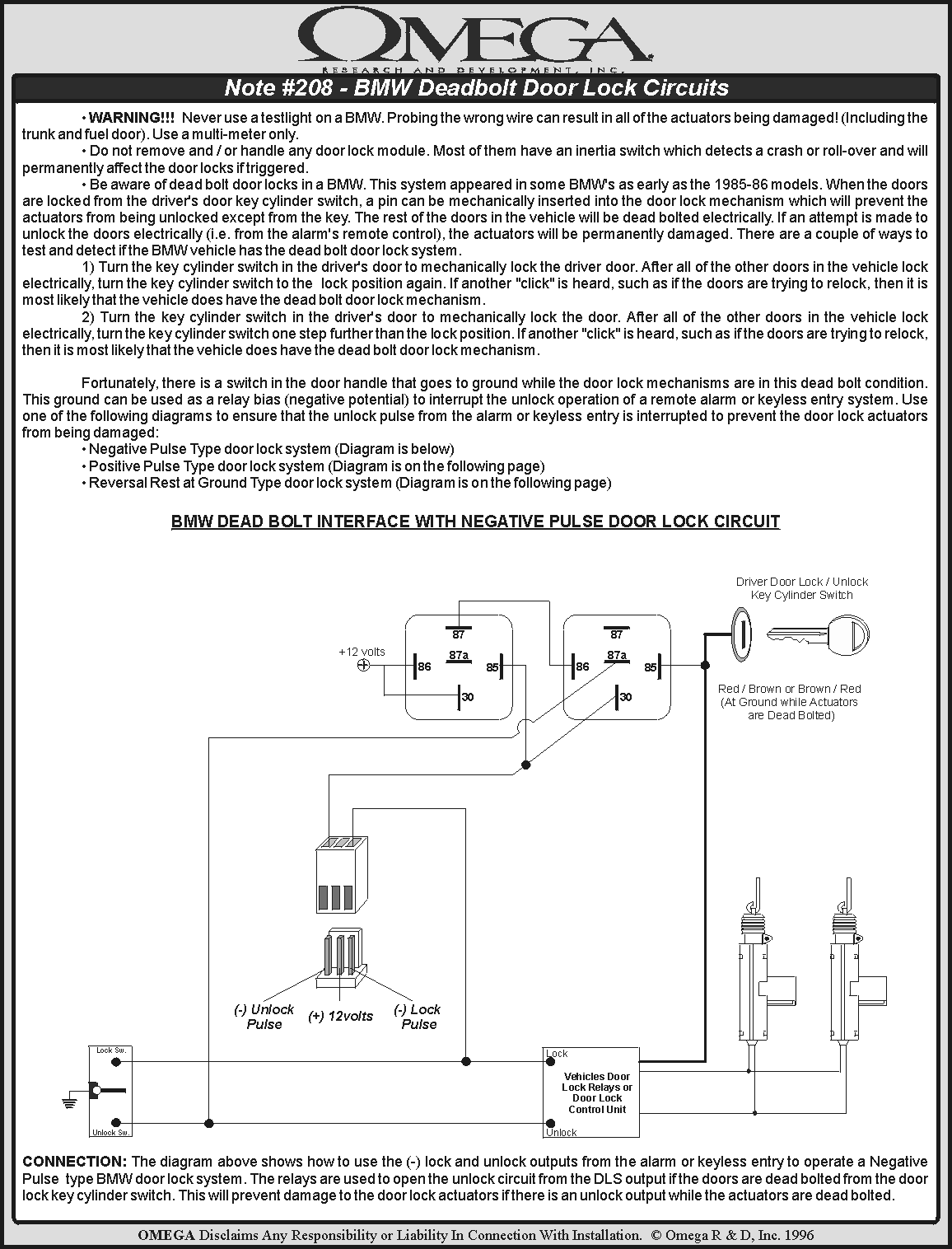

      â“”  BMW Deadbolt

More Relay Diagrams

➊  Most Common Relay Diagrams

âž‹  Immobilizer Bypass (PATS/VATS/Passlock I/II) Relay Diagrams

➌  Miscellaneous Relay Diagrams
