Wired Smoke Detector for 12v Normally Opened or Normally Closed (NO/NC) Alarm Systems - 12 Volt

Detector Overview
This wired smoke detector will connects to any normally open (NO) or normally closed (NC) circuit alarm system.

It uses both ionization and photoelectric smoke sensors for higher performance. The photoelectric sensors are set to industry standards to help prevent false alarms like through cooking or using candles. They also respond faster to fires give you and your family more time to leave the house safely.

Use With or Without an Alarm System
This smoke detector can connected to any normally open (N/O) or normally closed (N/C) zone on an alarm alarm system. They can also be used by themselves by connecting a 12-volt power source.  The built-in relay can trigger 12v device under 100mA.  Power supply not included.

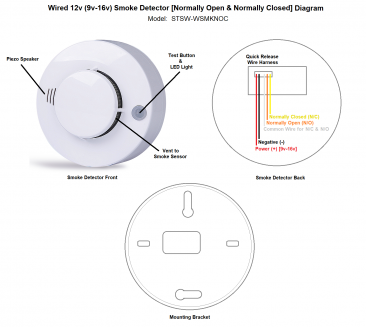

Wired Connections
This wired smoke detector uses 4 or 5 wires in total.
Two wires are for power (+) and (-).
Three wires are used for the Normally Opened (NO) or Normally Closed (NC) circuit (use only 2 or all 3 of these wires).

Features
Photoelectric detection to reduce false alarms (i.e. cooking in the kitchen)
Sensitivity control inside detector.
Automatic reset when smoke dissipates or Latch until reset.

LED Light
1 Flash: Automatic Test Check
Solid LED: Alarming

-- Detector Specifications --
Voltage:  12v DC (12 Volts)
Alarm Piezo Speaker: None
Current: ≤10uA (Standby); ≤15mA (Alarming)
Best Working Temperature: 14°F – 140°F (-10°C – 60°C)
Work humidity: ≤95%RH

-- Detector Dimensions --
Sensor: Diameter: 4.06 x 2.17 inches (Diameter: 103mm x 50mm)
